Description

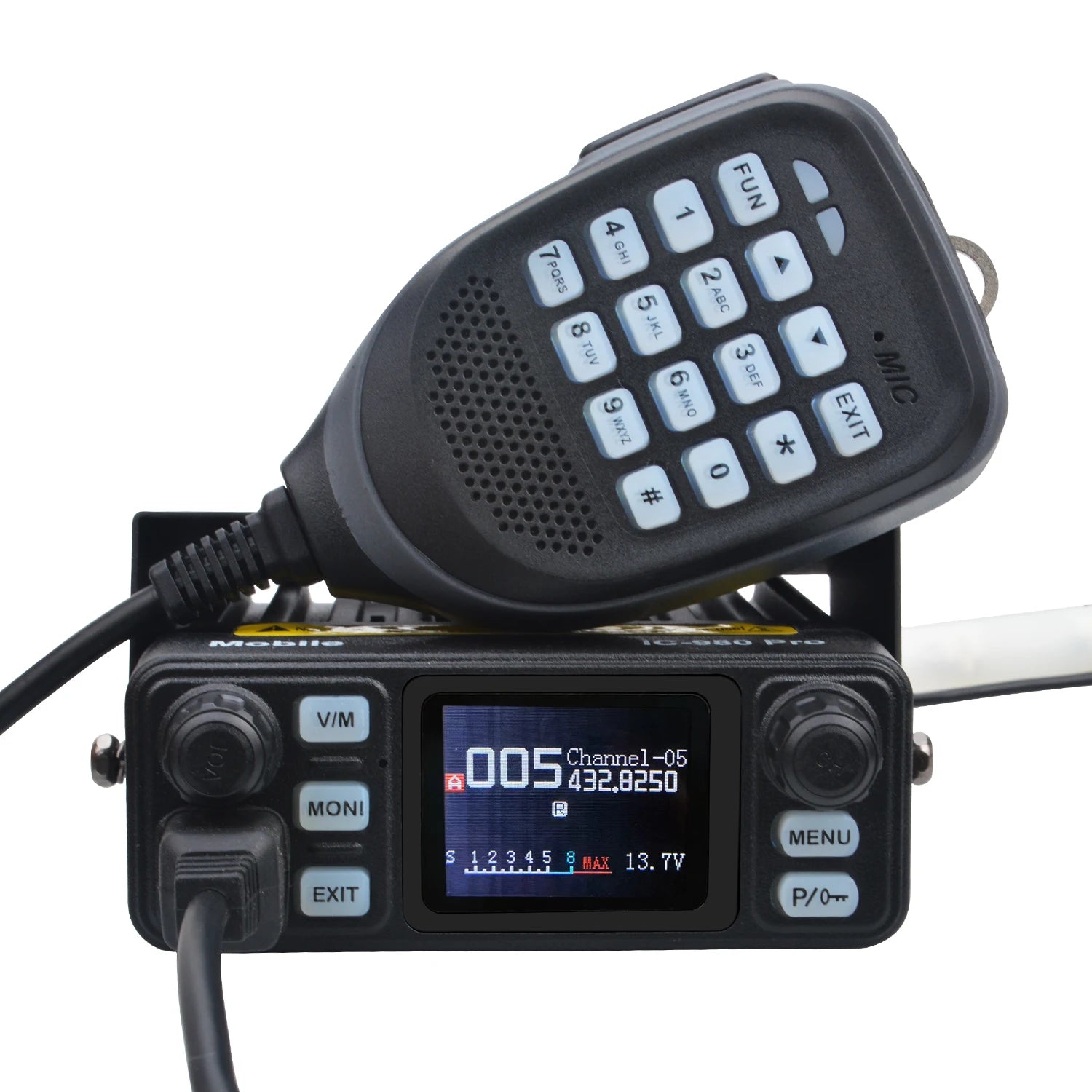

HIROYASU Walkie Talkie IC-980Pro VHF UHF Dual Band Dual Watch 25W 200Ch Background Noise Reduction Mini FM Vox Scrambler Mobile Radio IC-980 Pro Transceiver with 13.8V Car Cigarette Lighter Input Power Cable
Troubleshoot:
1.Q: How to turn the FM Broadcast Radio Station ON?
A: Press "FUN" key on the microphone momentarily, then press Numeric key"7" subsequently to turn the Commercial FM Radio ON. repeater the procedure to turn FM radio off.
2. Q: does this transceiver have 1750Hz Tone for Repeater Access in E.U
A: Yes,we re-designed the PCB board, and added a 1750Hz Tone Module in it basd on the demands from E.U customers. and all production batch of radios starting from April 19 are configuated with 1750Hz Tone.
3. Q: How to save a memory channel?
A: 1st. Press V/M button on the front panel to switch your radio in VFO Mode,
2nd: Input the desired frequency by the numeric key on the microphone
3rd: Press "FUN" key on the microphone momentarily, then press Numeric key"0" subsequently, and press "Up" or" Down" Key on the microphone to select your desired channel number . (Notes:the LCD will display Cover->001, "Cover->001 " means that the channel 1 is occupied, you can save your frequency to cover the previous memory channel., SAVE->234 means that the channel you selected is empty, you can directly save your frequency to it. )
4th: Press "FUN" key on the microphone to save the frequency to channel,.When the data is stored, the word OK will be displayed.
5th: you can recall the memory channel in channel model.

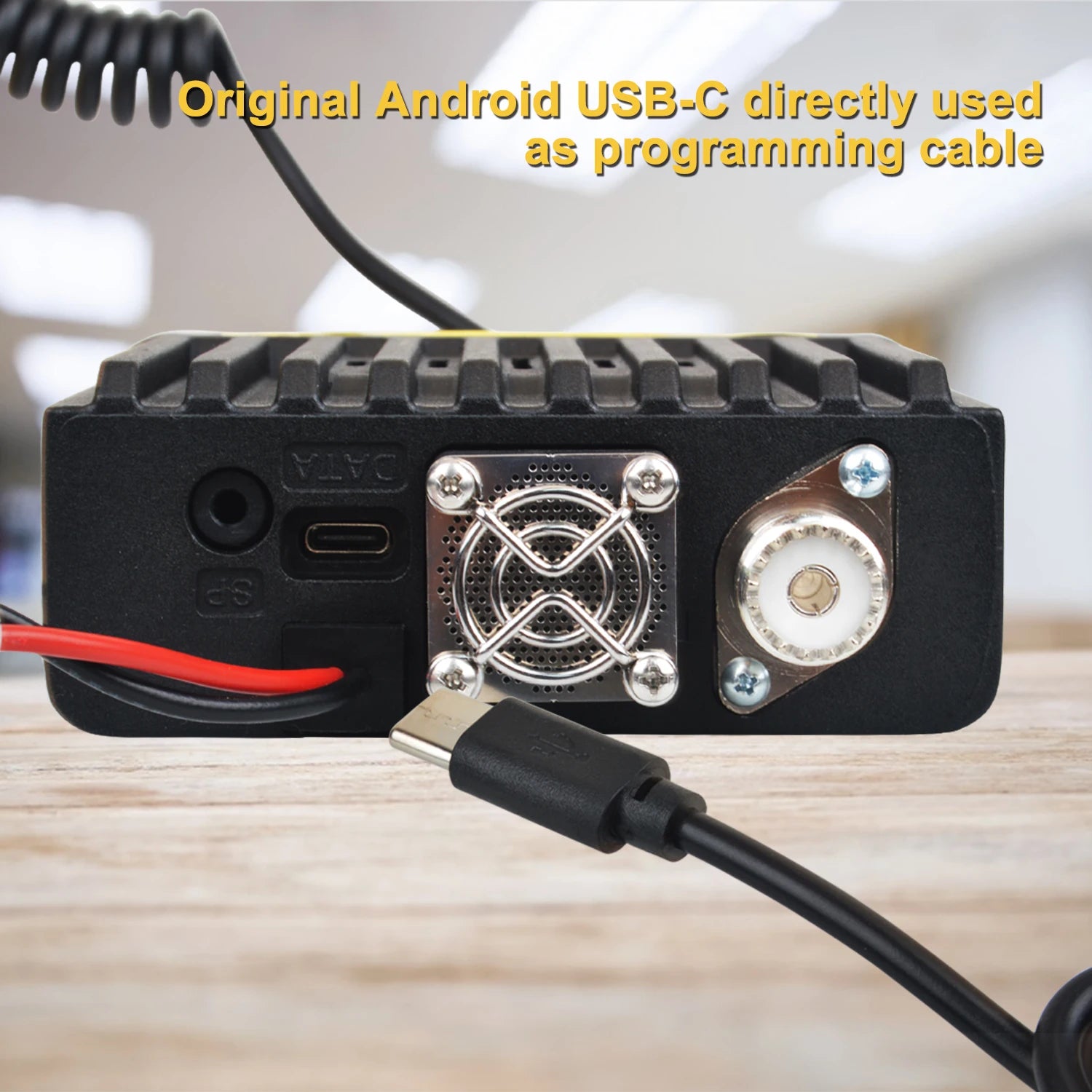

4. Q: where can i get the HIROYASU IC-980Pro programming software?
A: send us your email address by order message , then we will email it to you immediately when we read your message.
5. Q: How does the built-in cooling fans initiate?
A:The cooling fan works intelligently when radiator of the RF power amplifier reaches a certain high temperature even if the transceiver is receiving still.
Features:

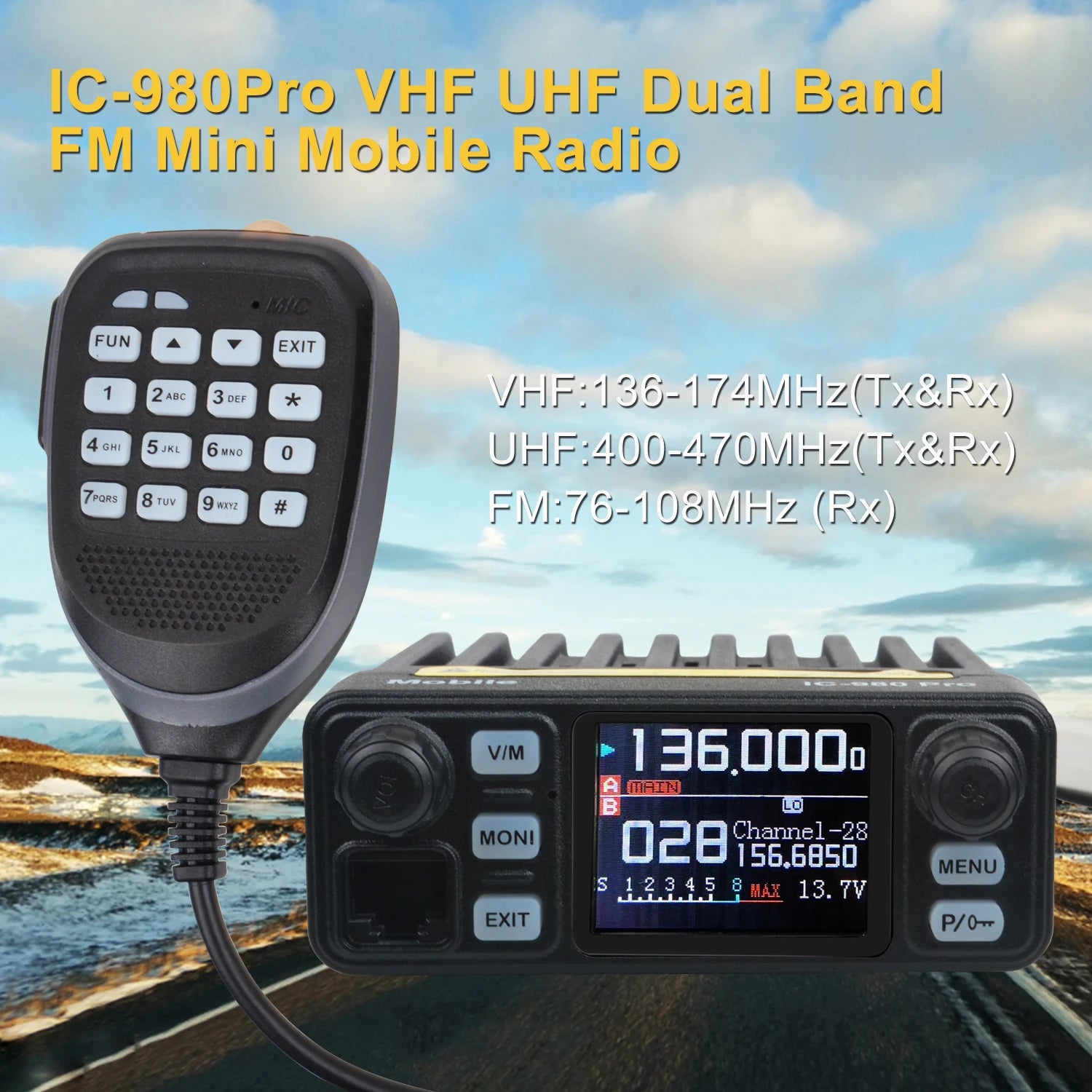

Frequency Range:

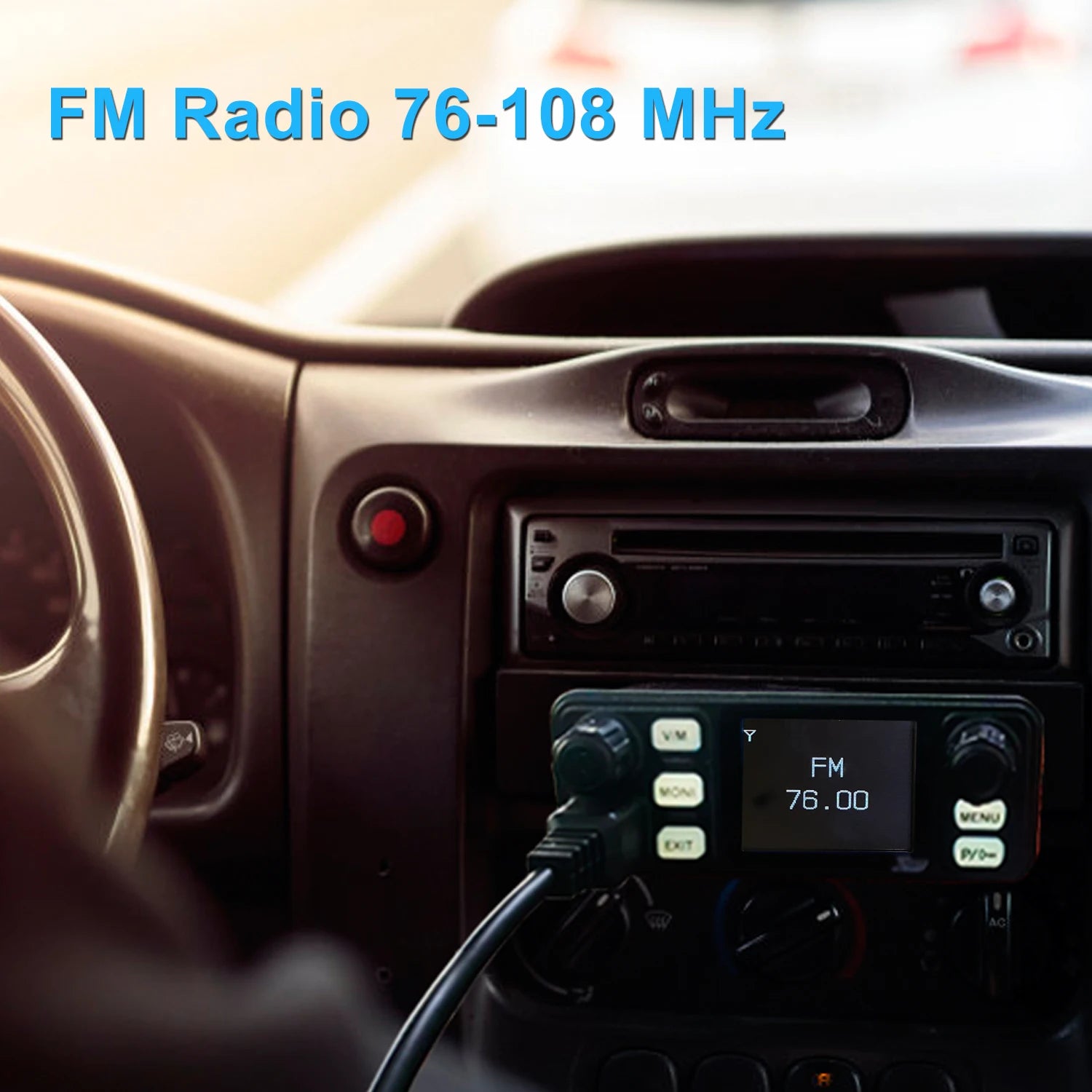

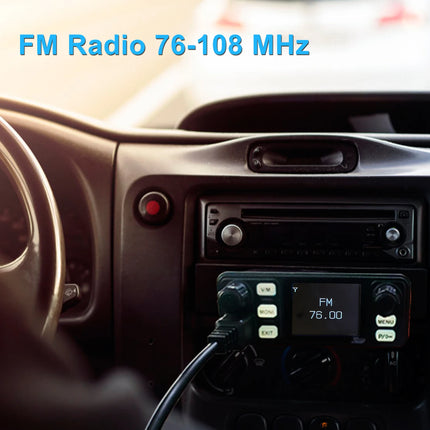

FM:76-108MHz (Rx)
VHF:136-174MHz (Tx&Rx)
UHF:400-470MHz (Tx&Rx)

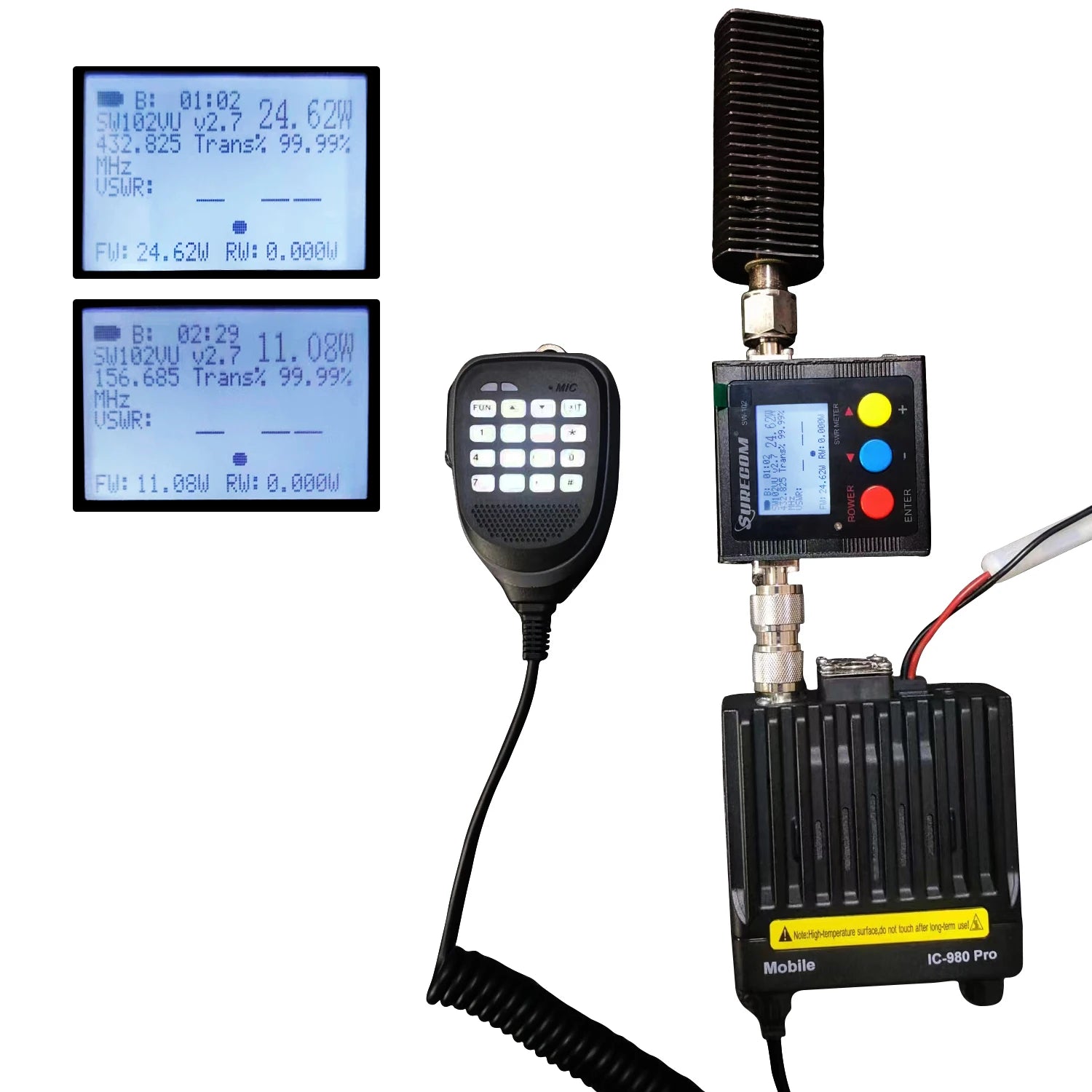

Output Power(H/L Power Switchable): High=25W, LOW=10W
Memory Channels: 200
Background noise Canceling
1750Hz Tone
Mini Size, light weight
Compandor
Scrambler
Busy Channel Lock
TOT
TOA
Repeater SFT-D
SFT Frequency
Sep:2.5/5/6.25/10/12.5/20/25/30K
CTCSS/DCS and special DCS
Display Mode: Frequency/Ch/MR
Roger Beep (end of transmission tone)
Double Watch
VOX( Voice-activated transmission)
Keypad lock
Priority Channel Scan
Cigarette Lighter Power cable
Dc 13.8V power Supply
Photos:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Specifications:
General |
Frequency Range: |
FM Radio:76-108MHz (Receive only)
VHF:136-174MHz (Tx& Rx)
UHF: 400-470MHz (Tx&Rx)
|
Memory Channel |
200 |
Frequency Step |
2.5/5/6.25/10/12.5/20/25/30/50KHz |
Working Voltage |
13.8V±15% |
Squelch Mode |
Carrier/CTCSS/DCS |
Frequency Stability |
±2.5ppm |
Working Temperature |
-20°cto 60°c |
Dimensions |
108mm*40mm*102mm |
Weight |
450g |
Receiver |
|
Wide Band |
Narrow Band |
Sensitivity(12dB SINAD) |
≥0.2uV |
≥0.14uV |
AdjacentChannel Selectivity |
≥70dB |
≥60dB |
Inter-modulation |
≥65dB |
≥60dB |
Spurious Response |
≥70dB |
≥70dB |
Signal to Noise Ratio |
≥45dB |
≥45dB |
Audio Distortion |
≤5% |
Audio power |
≥2W±10% |
Transmission |
|
Wide Band |
Narrow Band |
Output Power |
H: 25/20W (VHF/UHF), L: 10W/8W(VHF/UHF) |
Modulation |
16KΦF3E |
11KΦF3E |
Adjacent Ch. power |
≥70dB |
≥60dB |
Signal to Noise Ratio |
≥40dB |
≥40dB |
Parasitics and harmonics |
≥60dB |
≥60dB |
Audio Distortion |
≤5% |
Note: Specifications are subject to change without notice due to technical improvement.
Package Contains:
1×IC-980 Pro Mni Radio Body
1× Speaker Mic
1× Bracket
1× Cigarette Light Power Cable
1× Screw Sets
1× Hook for Speaker Mic
1× ENG Manual
